LED Industry-specific Rotary Joint/Rotating Valve Regularly

Download Center

Rotary Joint
led rotaryjoint

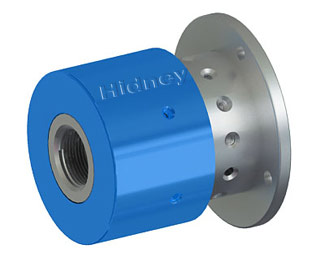

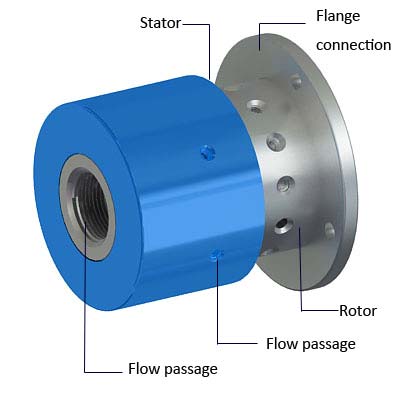

LED industry special rotating joint is a professional design for the LED manufacturing equipment application



The compact design style, effectively reduce the occupied space of the rotating joint



Into the way of design, more efficient and customer equipment should cooperate with each other



One in 12 out, one in 18 out pattern choice, the Angle control rotary joint work



Loading/unloading of imported high-speed bearing support, internal quality seal junction



Effective control of the rotating joint work



Any other requirements, contact: technical@erotaryjoint.com


rotaryjoint

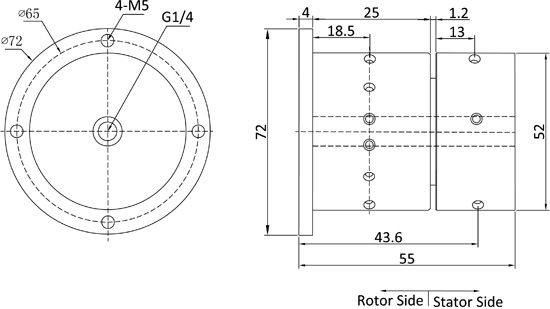

model# input screws output screws passage meida
DL-G1/4 G1/4 M5 ¦µ8¦µ10 vacuum£¬gas
DL-G3/8 G3/8 M5 ¦µ14¦µ16 vacuum£¬gas

Rotary valve timing/swivel order instructions

Rotary joint product specifications for the standard model size, if need other requirement according to your requirements

Customization, including connection mode, as well as the types of control, channel number, size requirements, as well as the requirement of the shape

Rotary joint work speed, temperature, pressure, etc

Connection mode, size requirements, channel number, material requirements, medium type, and shape

Provide rotation timing valve control point of view, and control

Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint

Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint

Custom rotary joints, please click on the sales hot line086-0755-27222664email:rotaryjoint@163.com
