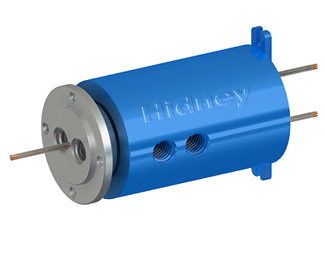

Divider special rotary joint/swivel joint is designed for the rotating disk application



Division dedicated electric rotary joint is professional equipment when rotating around the tube



Routing problem, the line is often connected with electromagnetic valve and the sensor, is a high-end

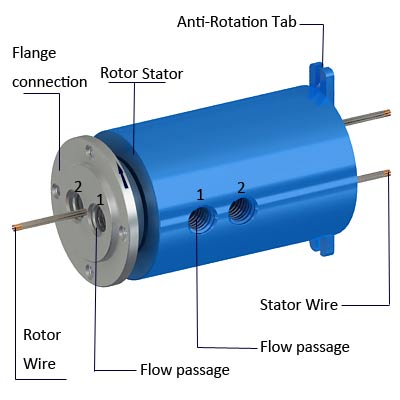

Integrated by the conductive slip ring and pneumatic rotary joint advantages, at the same time



360 rotary transfer gas, signal, the current medium, such as using the precious metal



(Gold - gold) conductive, high wear resistance, small resistance, excellent electric conductivity



Any other requirements, contact: technical@erotaryjoint.com


rotaryjoint

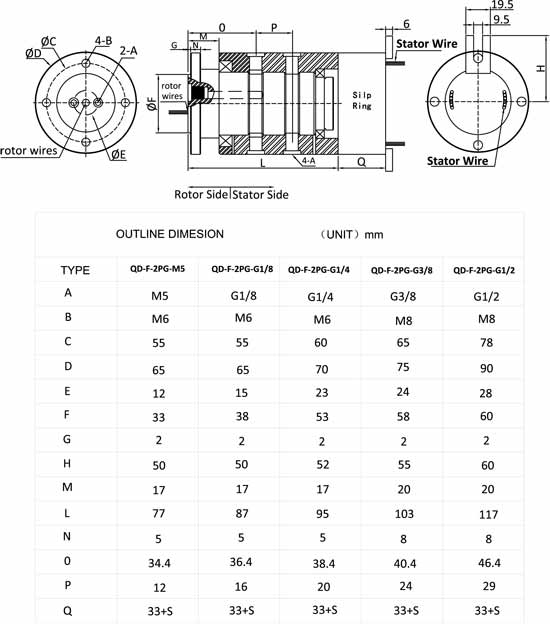

model# screws tube size passage media
DT-F-2to4-D65L137 5A G1/8 air passage 2 in 4 out 5power rings 3signal rings power signal gas

Division dedicated rotary joint order

Rotary joint product specifications for the standard model size, if need other requirement according to your requirements

Customization, including connection mode, as well as the types of control, channel number, size requirements, as well as the requirement of the shape

Rotary joint work speed, temperature, pressure, etc

Connection mode, size requirements, channel number, material requirements, medium type, and shape

Provide rotation timing valve control point of view, and control

Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint

Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint

Custom rotary joints, please click on the sales hot line086-0755-27222664email:rotaryjoint@163.com
