Special Motor Rotary Joint/Pneumatic Rotary Joint

Download Center

Rotary Jointss
led rotaryjoint

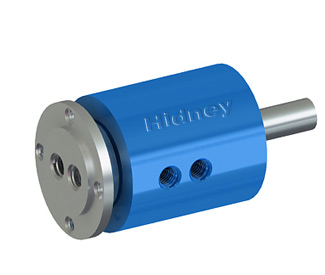

Special motor rotating joint is according to the customer designated axial



Extension designed, the effective axial threaded hole connected to the motor



Compact design, can work stable in the high-speed environment



Zero leakage sealing technology, imported high temperature bearing at high speed and resistance



The performance of the sealing, can make the rotary joint stability in high temperature environment



The seal is characterized by high temperature wear resistance corrosion resistance, good sealing, etc



Any other requirements, contact: technical@erotaryjoint.com


rotaryjoint

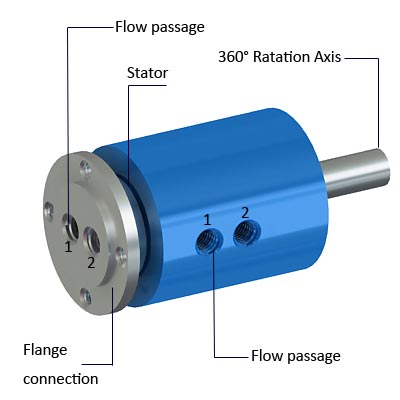

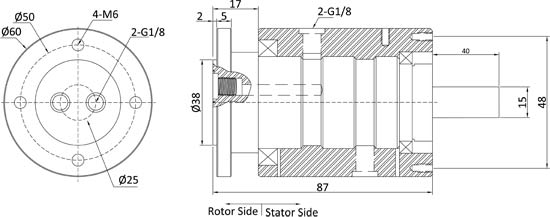

model# screws tube size passage media
DT-DJ-D55L130 M5 ¶Ķ6 3opassage gas

Special motor rotary joint order

Rotary joint product specifications for the standard model size, if need other requirement according to your requirements

Customization, including connection mode, as well as the types of control, channel number, size requirements, as well as the requirement of the shape

Rotary joint work speed, temperature, pressure, etc

Connection mode, size requirements, channel number, material requirements, medium type, and shape

Provide rotation timing valve control point of view, and control

Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint

Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint

Custom rotary joints, please click on the sales hot line086-0755-27222664email:rotaryjoint@163.com
