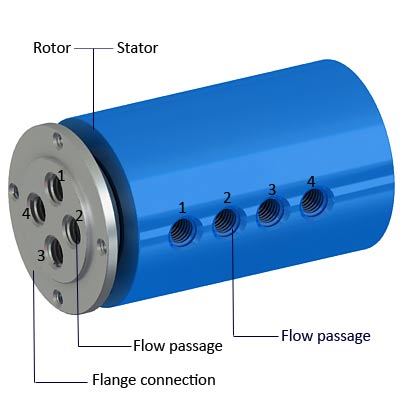

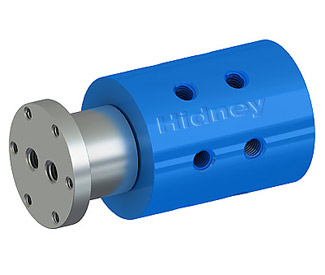

Injection molding machine dedicated rotary joint professional design for the injection molding machine application



Customer specified the direction of more output hole design, and fixed the u-shaped slot



All steel materials, resistant to high pressure by the dynamic seal



Zero leakage sealing technology, imported high temperature resistant bearing with high resistance



The performance of the sealing, can make the rotary joint stability in high temperature environment



The seal is characterized by high temperature wear resistance corrosion resistance, good sealing, etc



Any other requirements, contact: technical@erotaryjoint.com


rotaryjoint

model# screws tube size passage media

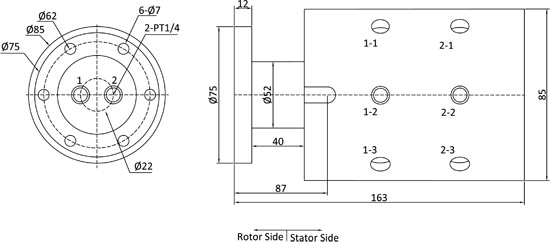

DT-F-2PG-D75L163 5A G1/8 air passage 2 in 4 out 5power rings 3signal rings power signal gas

Division dedicated rotary joint order

Rotary joint product specifications for the standard model size, if need other requirement according to your requirements

Customization, including connection mode, as well as the types of control, channel number, size requirements, as well as the requirement of the shape

Rotary joint work speed, temperature, pressure, etc

Connection mode, size requirements, channel number, material requirements, medium type, and shape

Provide rotation timing valve control point of view, and control

Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint

Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint

Custom rotary joints, please click on the sales hot line086-0755-27222664email:rotaryjoint@163.com
