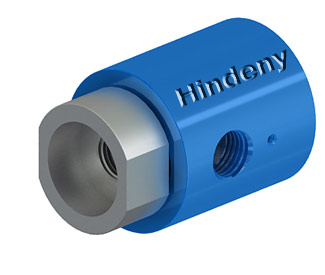

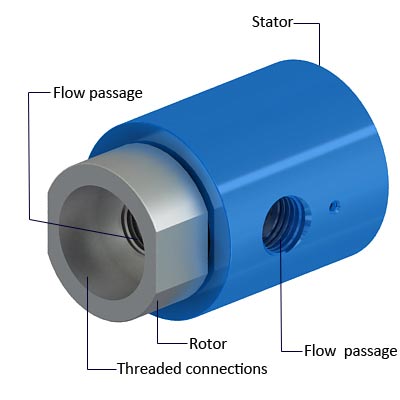

Special machine tool rotary joint/swivel joint is designed for spindle rotation



Can use flange link thread links, axial via links, effectively integrated into



Or on the machine tool spindle rotary oil cylinder, control the working state of the jig, solve internal



Around the pipe, special machine tool rotary joint belongs to a high-speed rotary joint



Support for gas, oil, water and other medium rotary conveying at the same time, the internal imported high-speed



Bearing support, the imported seal for effective dynamic seal£¨



Any other requirements, contact: technical@erotaryjoint.com


rotaryjoint

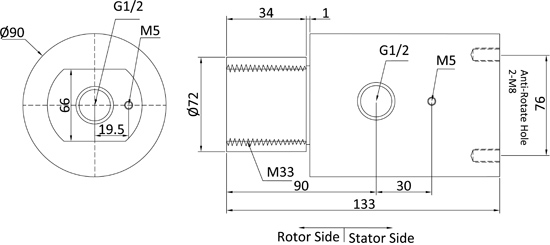

model# screws tube size passage media
DT-JC-D90L133 G1/2£¨M5 ¶Ķ25¶Ķ6 2¬∑passage gas£¨oil

Machine tool rotary joint order

Rotary joint product specifications for the standard model size, if need other requirement according to your requirements

Customization, including connection mode, as well as the types of control, channel number, size requirements, as well as the requirement of the shape

Rotary joint work speed, temperature, pressure, etc

Connection mode, size requirements, channel number, material requirements, medium type, and shape

Provide rotation timing valve control point of view, and control

Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint

Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint

Custom rotary joints, please click on the sales hot line086-0755-27222664email:rotaryjoint@163.com
