Laser Equipment Dedicated Rotary Joint/Pneumatic Rotary Joint

Download Center

Rotary Joints
led rotaryjoint

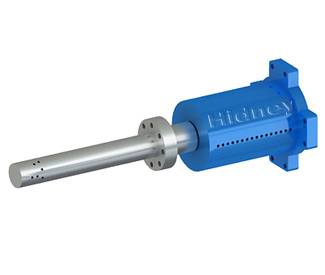

Laser equipment dedicated rotary joint/swivel joint is designed for the rotating disk application



Customer effective axial elongation device, connected to the equipment effectively, rin



Threaded hole design, finish the homework, together with the vacuum transmitter special laser equipment



Rotary joint is a high-end high-performance swivel derivatives, adopted the dynamic



Seal sealing technology, the United States military to beautiful with hard surface treatment technology

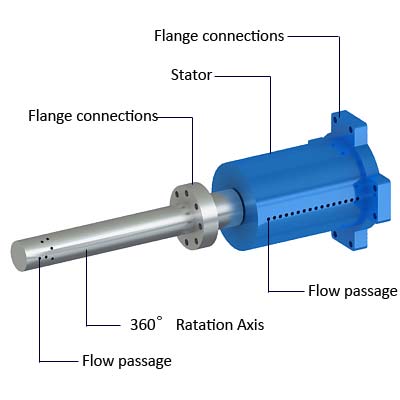

Double flange form, a connected to the rotating disk, and one for the fixed object



Any other requirements, contact: technical@erotaryjoint.com


rotaryjoint

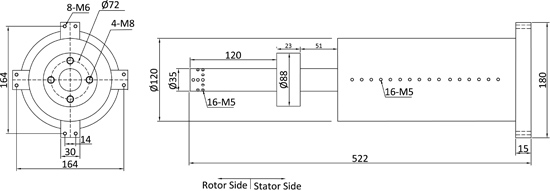

model# connector screws tube size passage media
DT-JG-D120L522 M5 ¦µ6 16· vacuum

Laser equipment dedicated rotary joint order

Rotary joint product specifications for the standard model size, if need other requirement according to your requirements

Customization, including connection mode, as well as the types of control, channel number, size requirements, as well as the requirement of the shape

Rotary joint work speed, temperature, pressure, etc

Connection mode, size requirements, channel number, material requirements, medium type, and shape

Provide rotation timing valve control point of view, and control

Rotary joint choice: type high speed rotary joints, high temperature type rotary joints, high pressure type rotary joint

Medium type options: pneumatic rotary joint, vacuum rotary joints, hydraulic rotary joint, hot and cold water use rotary joint

Custom rotary joints, please click on the sales hot line086-0755-27222664email:rotaryjoint@163.com

>
