DT-F-6PG Rotary Joint

Download Center

Rotary Joint

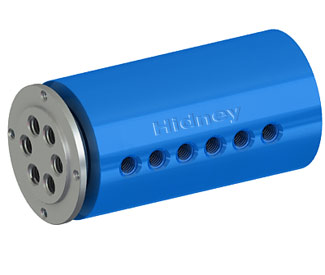

DT-F-6PG rotary joint a equipment usually used to connect the supply and return line



Standard rotary joint are used to Pneumatic and hydraulic services which support gas,oil,water,and Chemicals



Screws for muli-media transmission:M5 G1/8 G1/4 G3/8 G1/2 G3/4 can be designed



High pressure rotary joint,high temperature rotary joint, high speed rotary joint, max pressure reach to 15000PSI,,



Max speed reach to 8000RPM,max speed reach to 460”ćC,support by the imported high precision bearing



Any other requirements, contact: technical@erotaryjoint.com
rotaryjoint

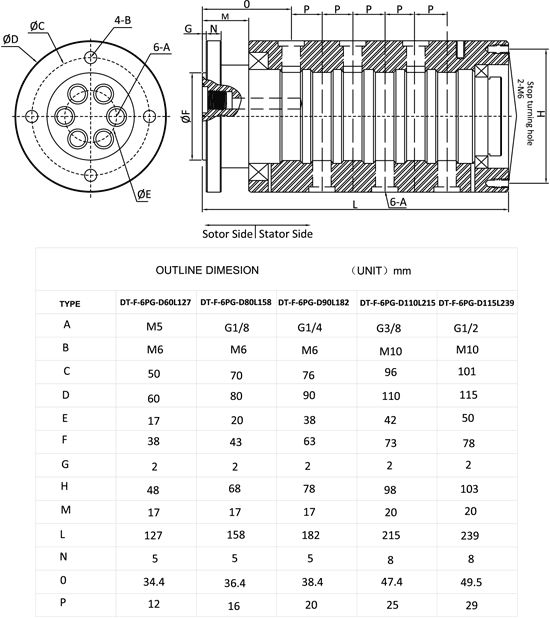

model# screws passage tube diameter media slip ring
DT-F-6PG-D60L126 M5 6passage ¦µ4 ¦µ6 water gas oil option for
DT-F-6PG-D65L155 G1/8 6passage ¦µ6¦µ8 water gas oil option for
DT-F-6PG-D70L184 G1/4 6passage ¦µ10¦µ12 water gas oil option for
DT-F-6PG-D80L230 G3/8 6passage ¦µ14¦µ16 water gas oil option for
DT-F-6PG-D115L265 G1/2 6passage ¦µ18¦µ25 water gas oil option for

order guidance

Above rotary joint are standard specification, it could also be customized according to your requirements

Customized£¬including connect ways, total wires, passage number, size requirements, and related shape requirements

Requirements for the rotate speed, temperature, pressure,and so on

Connect ways,size requirements, passage number,material requirement, media type, shape requirement

Optional used with slip ring should provide total wires,current,media type.

Option for rotary joint:high speed rotary joint,high temperature rotary joint, high pressure rotary joint

Option for media type:Pneumatic rotary joint£¬Vacuum rotary joints£¬ZHGTF£¬Hot and cold water rotary joint

Hidney high quality rotary joint effectively replaced SMC rotary joint, import rotary joint
